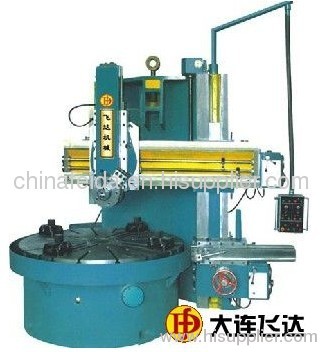

C5116 single column vertical lathe
| Place of Origin: | Liaoning, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
C5116 single column vertical lathe,CNC vertical lathe, vertical lathe, single column vertical lathe,double column vertical lathe
MAIN USE
Dalian Feida Heavy Machine Tool Manufacture Co.,Ltd manufacture this series machine is single column vertical lathe,it has a railhead and a sidehead,it's suitable of the ferrous,nonferrous metal and some kinds of non-metal materials with hard alloy,high capability and high speed steel tools.It can perform finely and roughly turning cylinder and inner hole,inner and outer taper,grooving ,drilling,tapping and reaming.
Technical specification of C5116/CX5116:
Max.turning diameter(mm) 1600
Table diameter(mm) 1400
Max.weight of workpiece (t) 5
Speed range of table (r/min) 5--160
Speed-step of table 16
Power of main motor(kw) 22
Max.working height of workpiece (mm) (1)Working height of standard model:1000mm
(2)Working height of increasing 200mm:1200mm
(3)Working height of increasing 400:1400
(4)Working height of increasing 600:1600
(5)Working height of increasing 800:1800
Travel of railhead Horizontal(mm) 915
Travel of railhead Vertical (mm) Turret 800 Ram 1000
Travel of sidenhead Horizontal 630
Travel of sidehead Vertical 900
Max.travel of crossbeam(mm) 650/850/1050/1250/1450
Weight of machine (About t) 12.5
Overall(L*W*H)(mm) (1)Standard model 2360*2270*2800(mm)
(2)Increasing 200mm 2360x2270x3000
(3)Increasing 400mm 2830x2670x3210
(4)Increasing 600mm 2830x2670x3410
(5)Increasing 800mm 2830x2670x3610
More vertical lathe model and detailed parameters please see website
